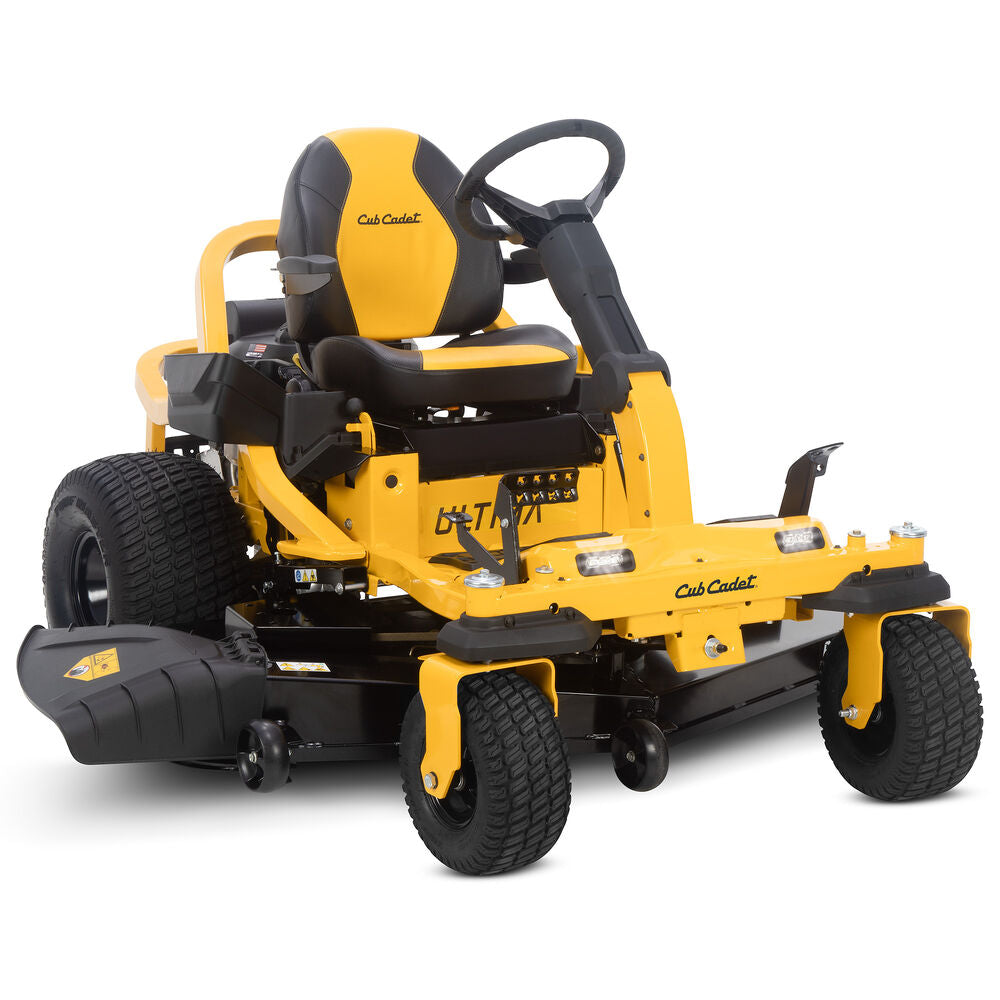

ZTS2 60
- Synchro-Steer™ technology offers 4-wheel control and provides unrivaled stability for straight-line mowing on hillsides and slopes up to 20-degrees

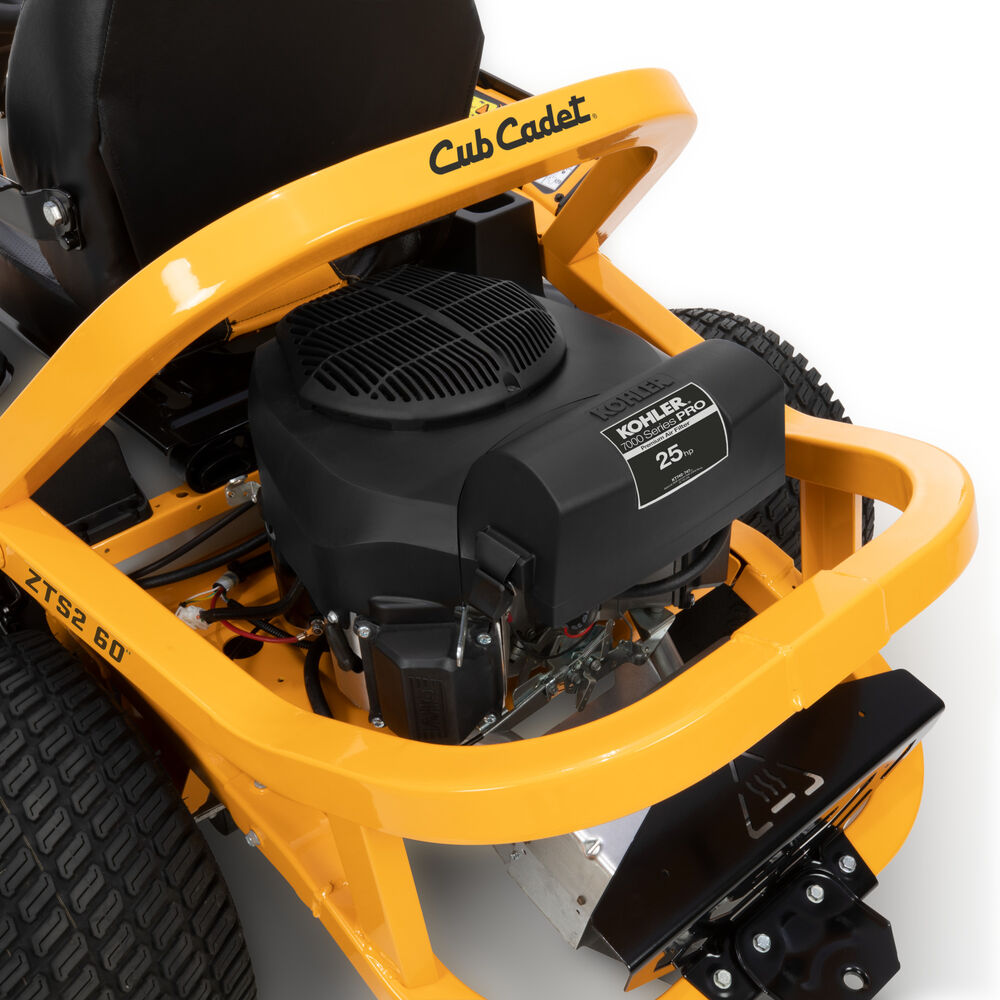

- A 25 HP/725cc Kohler 7000 series PRO V-twin OHV engine delivers high-performance power and exceptionally smooth, quiet operation
- Dual hydrostatic transmissions allow for quick and effortless 7 MPH forward (3.5 MPH reverse) ground speeds that quickly leaves your lawn with a professional-quality finish
Engine
- Engine Brand: Kohler®
- Engine Model: 7000 Series PRO
- Engine Model Number: KT726
- Engine Displacement: 747cc
- Engine Output: 26HP
- Starter Type: Electric
- Fuel Tank Capacity: 3.5 gal. US (13.25 L)
- Cylinders: Twin
- Engine Start: Ignition Key
- Engine Oil Capacity: 2.0 qt. US (1.89 L)
- Lubrication: Fully pressurized
- Charging System: 12 amp regulated
- Fuel Gauge: No
- Governor: Mechanical
- Choke: Choke-a-matic
- Air Filter: Dual element
- Oil Filter: Yes
- Fuel Delivery: Carburetor
Battery
- Battery: 210 CCA
- Battery Type: AGM (Absorbent Glass Mat)
- Battery Voltage: 12V
Drive System
- Transmission: Hydro-Gear ZT 2800
- Forward Speed: 7 MPH
- Reverse Speed: 3.5 MPH
- Drive System: Hydrostatic
Cutting Deck
- Deck Cutting: Width 60″
- Deck Wash: No
- Deck Material: 11-gauge steel
- Deck Engagement: (PTO) Electric
- Deck Construction: Fabricated
- Blade(s): 2
- Deck Lift: Foot pedal with Dial Adjust
- Cutting Height Range: 1” – 4.5”
- Anti-Scalping: 2 gauge wheels
- Deck Positions: 15
Warranty
- Residential Warranty: 3-year unlimited hours
- Frame Warranty: Lifetime Limited
- Deck Shell Warranty: Lifetime limited
- Commercial Warranty: No
Chassis
- Frame: 2” x 2” tubular steel
- Turning Radius: 0°
- ROPS: No
- Rear Tow Hitch: Yes
Controls
- Cruise Control: No
- Brakes: Disc
- Steering Control: Steering Wheel
Comfort
- Seat Type: 20″ high back
- Armrests: No
- Seat Adjustment: Lever
Wheels
- Rear Tires: 20”x 12”-8″
- Front Tires: 13″x 6.5″-5″
- Tire Tread: Turf Master / Multi Trac
Additional Specifications
- Hour Meter: Yes
- Mulch Kit: Available separately
- Headlight(s): Dual-LED
- Cup Holder: Yes
- Operator Presence System: Yes
- Parking Brake: Foot Operated
- Model Number: 17BSGGY5A10
- AIR FILTER:
- OIL FILTER:
- ENGINE OIL: 25 357 65-S OR 490-000-C044
- FUEL FILTER:
- SPARK PLUG:
- DECK BELT: 754P06094
- DRIVE BELT: 954-04317A
- BLADES : 742P05620 OR SET 490-110-C187
- XTREME BLADES: 742P05620-X OR SET 490-110-C188
- IGNITION KEY: 925-1745A
- HOUR METER KIT: NA
